| WL-PEEK-GEN | Unfilled High Viscosity | N/A (Unfilled) | Highest toughness/elongation, High performance, Suitable for extrusion | Seals (O-rings, lip seals), valve seats, medical implants (specific grades) |
| WL-PEEK-GEN | Unfilled Medium Viscosity | N/A (Unfilled) | Good flow/processability, High performance, General purpose injection grade | General injection molded parts, wire & cable insulation, thin-walled parts |
| WL-PEEK-GF30-HT | 30% Glass Fiber Reinforced | Glass Fiber, 30% | Significantly increased rigidity/strength/HDT, Excellent high-temp performance, Good chemical resist | Structural components (aerospace, industrial), metal replacement, bearing cages, backup rings |

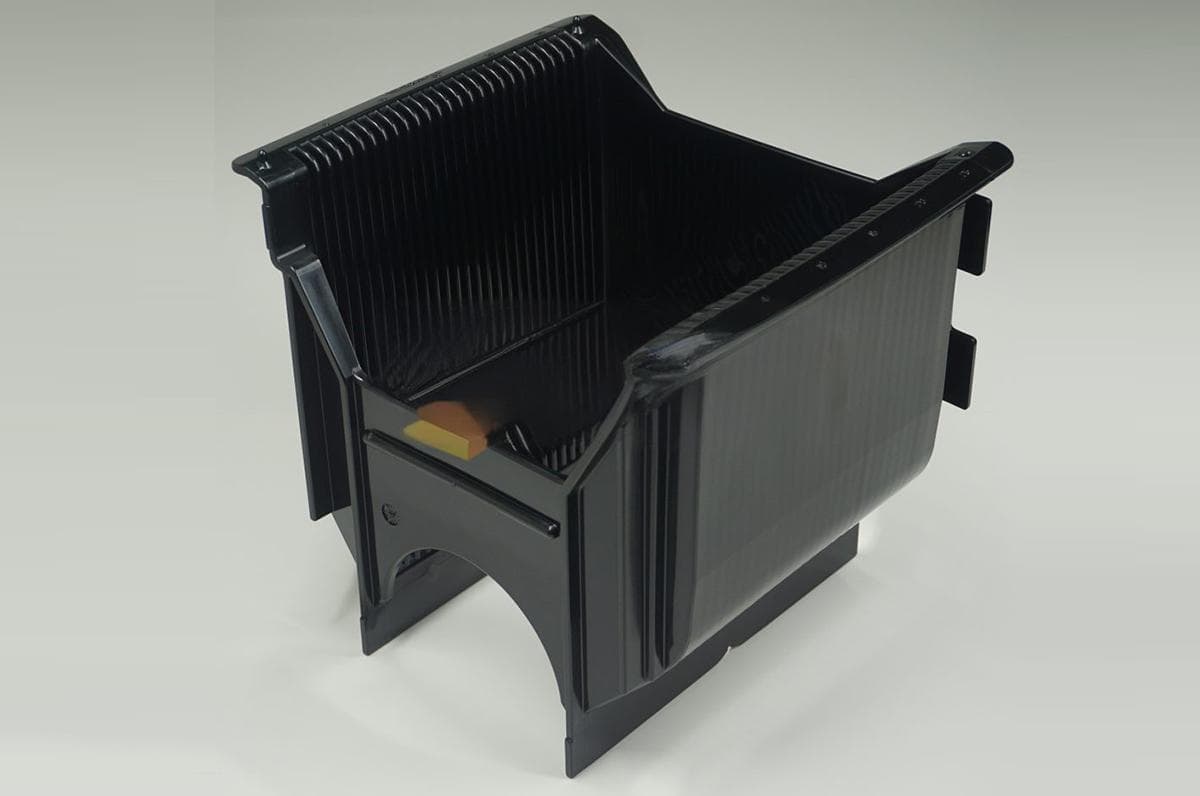

| WL-PEEK-CF30-HT | 30% Carbon Fiber Reinforced | Carbon Fiber, 30% | Highest rigidity/strength, Excellent high-temp performance, Improved thermal conductivity, Improved wear resist | High-stress structural parts (aerospace, racing), metal replacement (lightweighting), semiconductor equip |

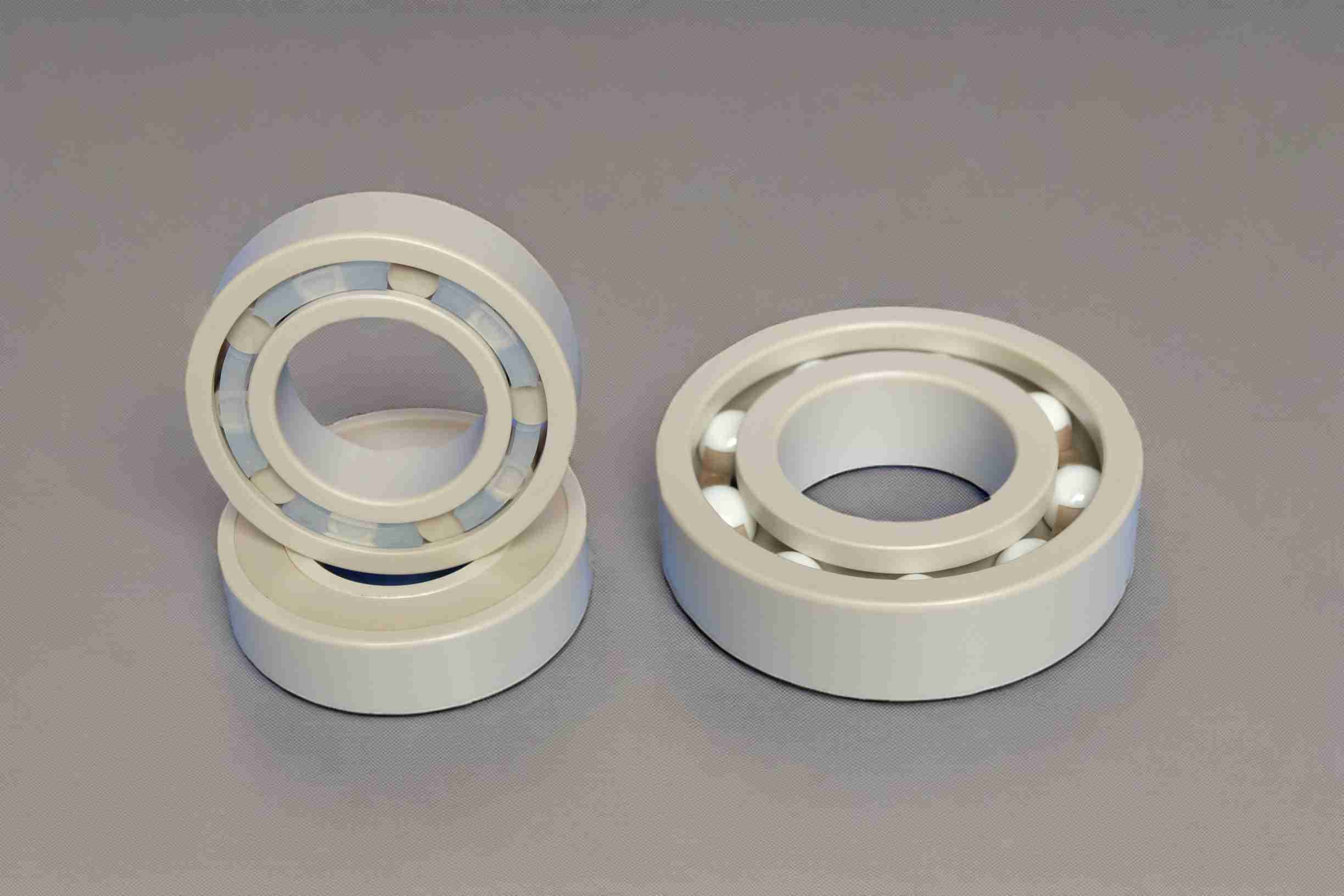

| WL-PEEK-CF10-HT | Wear Resistant Grade (CF/PTFE/Graphite) | Carbon Fiber, 10%; PTFE, 10%; Graphite, 10% | Low coefficient of friction, High wear resistance, High PV limit, Excellent high-temp performance | Bearings, bushings, thrust washers, seal rings, piston rings, gears (in severe conditions) |

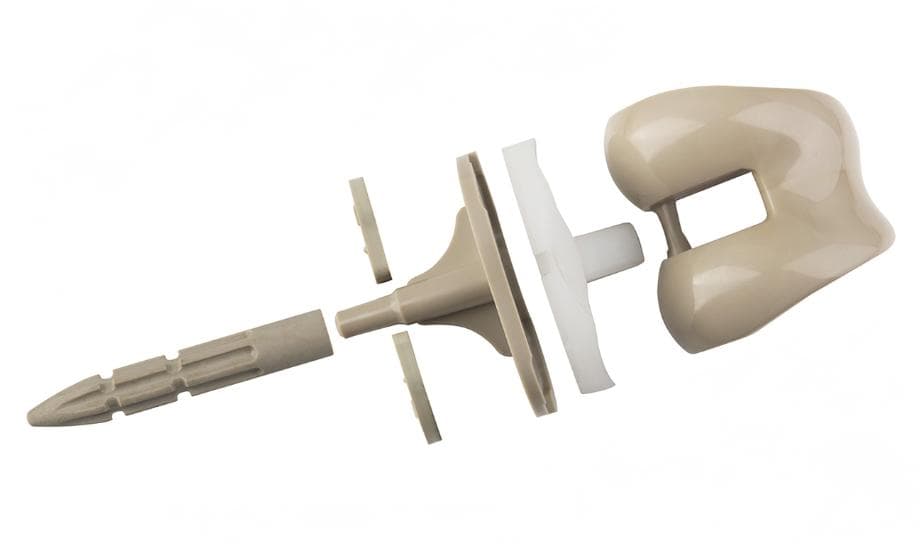

| WL-PEEK-GEN | Medical Grade (Implantable) | N/A (Unfilled, High Purity) | Long-term biocompatibility certified, Excellent biostability, Withstands sterilization | Spinal fusion cages, cranial reconstruction plates, joint replacement components (e.g., acetabular cups) |
